Product Description
Description:

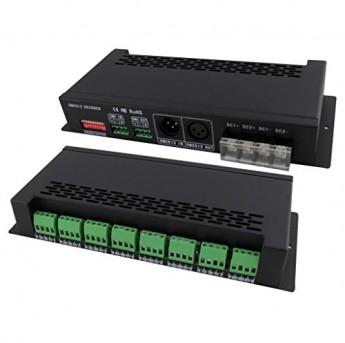

24CH RGB DMX decoding driver works to convert universal DMX512/1990 digital signal to PWM signal, which control led by DMX512 console, with 256 levels grey scale output per channel. Adopting unique programming technology, Creating exclamatory, perfect color fade & smooth effect, simultaneously let LED color more affluent.
Product parameter:
Input voltage DC12V-24V
Max load current 3A/CH¡Á24
Max output power 860W/1720W(12V/24V )
Output Scale level 256 levels
Input signal DMX512/1990
Output DMX Channel 24Ch CV PWM
working temperature -30¡æ-65
Dimension L260¡ÁW110¡ÁH40(mm)
Weight (G.W) 920g
Automatically adapt to LED light which works from DC12V-48V.
3 channels RGB full color control, 700MA output.
17 fantastic modes such as color smooth , color skipping, horserace, strobe, etc.
Can stop at static single color, speed & brightness adjustable at pause status.
In disorder station can reset to factory setting.
